Rapid solidification for green-solvent-processed large-area organic solar modules with >16% efficiency
Ben Zhang1, Weijie Chen1, Haiyang Chen1, Guang Zeng1, Rui Zhang4, Hongxiang Li5, Yunfei Wang6, Xiaodan Gu6, Weiwei Sun1,Hao Gu1, Feng Gao4,Yaowen Li1,2,3*（李耀文），Yongfang Li1,2,7
1Laboratory of Advanced Optoelectronic Materials, Suzhou Key Laboratory of Novel Semiconductor-optoelectronics Materials and Devices, College of Chemistry, Chemical Engineering and Materials Science, Soochow University, Suzhou 215123, China
2Jiangsu Key Laboratory of Advanced Negative Carbon Technologies, Soochow University, Suzhou 215123, China
3State and Local Joint Engineering Laboratory for Novel Functional Polymeric Materials, Jiangsu Key Laboratory of Advanced Functional Polymer Design and Application, College of Chemistry, Chemical Engineering and Materials Science, Soochow University, Suzhou 215123, China
4Department of Physics, Chemistry and Biology (IFM), Linköping University, Linköping SE-58183, Sweden
5College of Polymer Science and Engineering, State Key Laboratory of Polymer Materials Engineering, Sichuan University, Chengdu 610065, China
6School of Polymer Science and Engineering, Center for Optoelectronic Materials and Devices, The University of Southern Mississippi, Hattiesburg, Mississippi 39406, USA
7Beijing National Laboratory for Molecular Sciences, CAS Key Laboratory of Organic Solids, Institute of Chemistry, Chinese Academy of Sciences, Beijing 100190, China
Energy Environ. Sci., 2024, 17, 2935

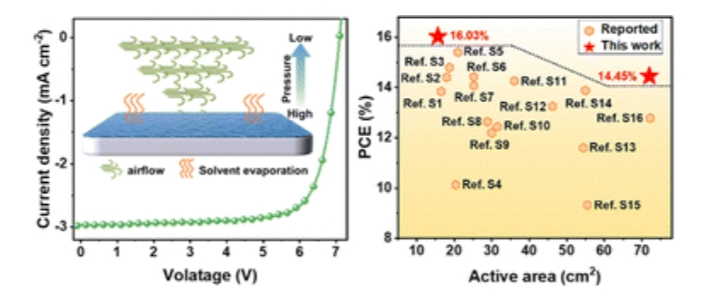

Abstract: Enabling green-solvent-processed large-area organic solar cells (OSCs) is of great significance to their industrialization. However, precisely controlling the temperature-dependent fluid mechanics and evaporation behavior of green solvents with high-boiling points is challenging. Controlling these parameters is essential to prevent the non-uniform distribution of active layer components and severe molecule aggregation, which collectively degrade the power conversion efficiency (PCE) of large-scale devices. In this study, we revealed that the temperature gradient distribution across a wet film is the root of the notorious Marangoni effect, which leads to the formation of a severely non-uniform active layer on a large scale. Thus, a rapid solidification strategy was proposed to accelerate the evaporation of toluene, a green solvent, at room temperature. This strategy simultaneously inhibits the Marangoni effect and suppresses molecular aggregation in the wet film, allowing the formation of a nano-scale phase separation active layer with uniform morphology. The resultant toluene-processed 15.64-cm2 large-area OSC module achieves an outstanding PCE of 16.03 % (certified: 15.69 %), which represents the highest reported PCE of green-solvent-processed OSC modules. Notably, this strategy also exhibits a weak scale dependence on the PCE, and we successfully achieved a state-of-the-art PCE of 14.45 % for a 72.00-cm2 OSC module.
链接：//pubs.rsc.org/en/content/articlelanding/2024/ee/d4ee00680a
