Solvent effect-driven assembly of W/Cu/S cluster-based coordination polymers from the cluster precursor [Et₄N][Tp*WS₃(CuBr)₃] and CuCN: isolation, structures and enhanced NLO responses

Quan Liu^ab,   Zhi-Gang Ren^a,   Li Deng^c,   Wen-Hua Zhang^*a(张文华),   Xin Zhao^a,   Zhen-Rong Sun^c  and   Jian-Ping Lang^*ad(郎建平)

^a College of Chemistry, Chemical Engineering and Materials Science, Soochow University, Suzhou 215123, People's Republic of China

^b College of Chemistry and Chemical Engineering, Nantong University, Nantong 226019, People's Republic of China

^c Department of Physics, East China Normal University, Shanghai 200062, People's Republic of China

^d Shanghai Institute of Organic Chemistry, Chinese Academy of Sciences, Shanghai 200032, People's Republic of China

Dalton Trans. 2015, 44, 130-137

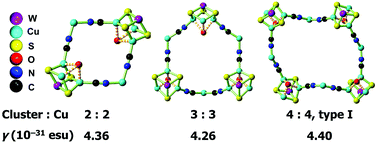

We herein describe a coordination polymer system built upon the reactions of a W/Cu/S cluster precursor [Et₄N][Tp*WS₃(CuBr)₃] (1, Tp* = hydridotris(3,5-dimethylpyrazol-1-yl)borate) with three equivalents of CuCN through solvent modulation. Four coordination polymers, namely, [Tp*WS₃Cu₃(μ₃-DMF)(CN)₃Cu(Py)](2), [Tp*WS₃Cu₃(μ₃-DMF)(CN)₃Cu](3), [Tp*WS₃Cu₃(μ₃-DMF)(CN)₃Cu]·4aniline (4·4aniline) and [Tp*WS₃Cu₃(μ₃-DMF)(CN)₃Cu]·2(DMF)_0.5 (5·2(DMF)_0.5), are isolated in different solvent systems and characterized by means of elemental analysis, FT-IR, UV-Vis, ESI-MS and single-crystal X-ray diffraction. Compounds 2–5 feature μ₃-DMF association with the nest-shaped [WS₃Cu₃] cluster cores, yielding cubane-type [WS₃Cu₃O] clusters which are further linked to single Cu(I) ions through CN bridges to provide 1D or 2D structures. Compounds 3–5 have identical chemical compositions in their main fragments but with distinctively different structural features, and are therefore topological isomers. Compound 2 has a ladder-type structure in which the side rails contain alternately linked cluster cores and Cu(I) ions. Compound 3 has a 2D (6,3) network with alternately arranged cluster cores and Cu(I) ions. Both 4 and 5 have 2D structures with 4·8² topology. In 4, a pair of cluster cores and Cu(I) ions form a 4-membered ring which is further linked to four equivalent rings through four CN ligands via a cluster core-to-Cu arrangement; while in the structure of 5, the same 4-membered rings as those in 4 are extended to equivalent rings via a cluster core-to-cluster and Cu-to-Cu arrangement. The hyperpolarizabilities (γ) of the polymeric networks exhibit an enhancement of more than 10 times compared to their parent cluster, 1.

链接：

//pubs.rsc.org/en/Content/ArticleLanding/2015/DT/C4DT02725F
